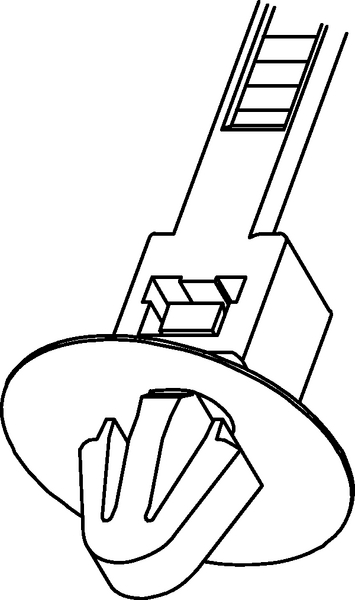

1-Piece Fixing Ties with Arrowhead, with Disc : T50SD6
1-Piece Fixing Tie with Arrowhead and Disc PA66HS 160x5.0 blackArticle number: 111-85350
Features
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises ingress of dust and dirt
- Cable tie head always situated in a defined position
- KSFT-types with specially rounded arrowhead minimise the assembly height
Certifications & Approvals
Application

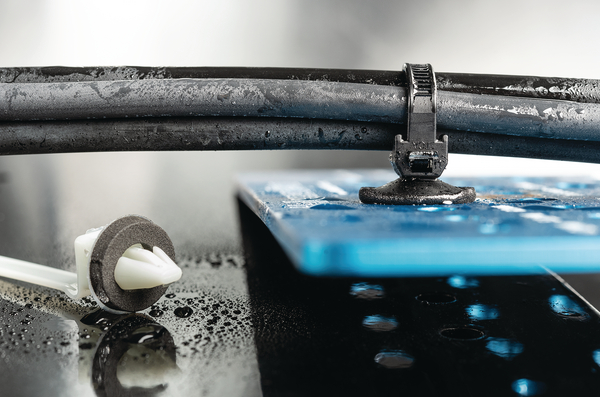

With a diverse range of fixing possibilities these ties are ideal for use in many different industries, including automotive, aerospace, white goods manufacture and panel building. This fastening solution is used to secure cable harnesses. We offer a variety of panel thicknesses and hole sizes to suit all kinds of application.
More products in this product group
1-Piece Fixing Ties with Arrowhead, with Disc >| Anti rotation (Yes / No) | NO |
| Application Tool | MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO9 |
| Colour | Black (BK) |
| Fixation Method | Arrowhead |
| Fixing Hole Shape | Circular |
| Identification Plate Position | none |
| Pack Cont. | 500pcs. |
| Package Quantity per | Bag |
| PART DESCRIPTION | T50SD6-PA66HS-BK |
| Product Family | for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie with Arrowhead and Disc PA66HS 160x5.0 black |
| Tie Closure | plastic pawl |
| Type | T50SD6.HB6P |
| Variant | Inside Serrated |
|
|
|
| Bundle ∅ max. | 31.0mm |
| Bundle ∅ min. | 1.5mm |
| Disc ∅ | 18.0mm |
| for Hole ∅ (FH) | 6.3 - 7.5 mm |
| for Panel Thickness min - max | 0.6 - 1.8 mm |
| for Panel Thickness min - max | 0 - 0.1 " |

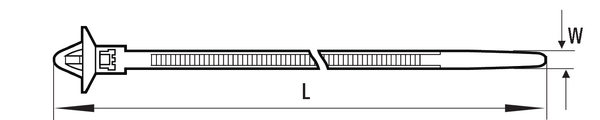

| Length (L) | 160.0mm |
| Length of Fir Tree | 8.0mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 0.6 – 1.8mm |
| Thickness (T) | 1.5mm |
| Width (W) | 5.0mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2 |
| Hazardous good | No |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Operating Temperature - °C | -40 °C to +105 °C, (+145 °C, 500 h) |
| Specifications |
|
|
|
|
| EAN / GTIN | 5022660326349 |
| Packaging 1 - Height (m) | 0.125m |
| Packaging 1 - Length (m) | 0.355m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01487m³ |
| Packaging 1 - Weight (kg) | 0.779kg |
| Packaging 1 - Width (m) | 0.335m |
| Packaging 3 - Height (m) | 0.364m |
| Packaging 3 - Length (m) | 0.563m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0777m³ |
| Packaging 3 - Weight (kg) | 7.189kg |
| Packaging 3 - Width (m) | 0.379m |
| Packaging 4 - Height (m) | 1.237m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.188m³ |
| Packaging 4 - Weight (kg) | 107.268kg |
| Packaging 4 - Width (m) | 0.8m |
| Weight | 0.779kg |
| ETIM 6.0 | EC000046 |
| ETIM 7.0 Key | EC000046 |
| UNSPSC Key | 39121703 |
