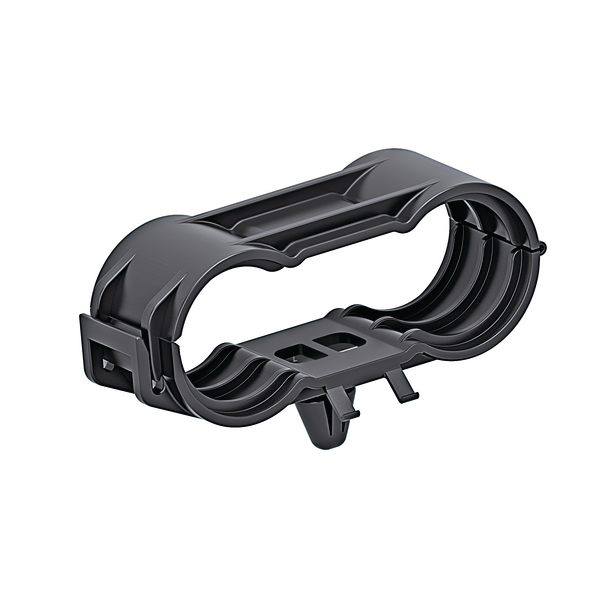

Corrugated tube clip for hole (round), Ø21.0mm, black, 100pcs.
Art.-No. 151-00021 | OCTCSFT6.5-PA66HIR-BK Details

  • Clamps for corrugated tubing for a variety of nominal diameters
  • Arrowhead simply locks into place
  • Tube is guided accurately by clicking
  • Axial slipping is prevented by the inside profile of the clamp
  • Type RCCD for oval holes 6.2 x 12.2 mm
  • OCTCSFT6,5 clamp for corrugated tubes for nom. diamter of 55-80 mm.
  • CTC-L profile clamp can also fastened to a metal edge
Show more

Request your individual offer now

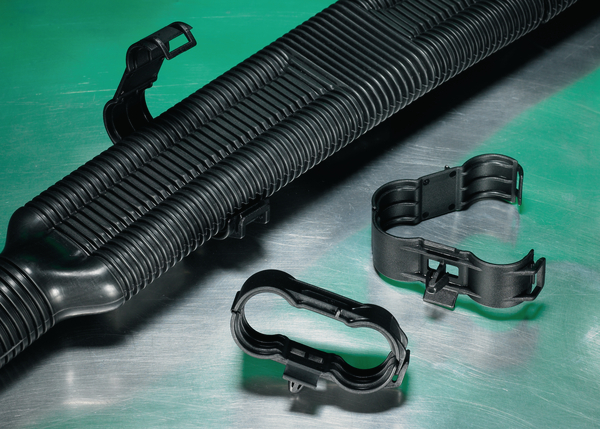

Application These clamps are used for example in the automotive industry, in the production of cable harnesses and in the electrical industry. Their quick and easy mounting is the reason for their universal success wherever corrugated tubing and pipes have to be fixed quickly and securely.
Colour Black (BK)
Fixation Method with Arrowhead / Push Mount (Mounts)
Key product features for convoluted tubes or with rib, for multiple routing, reusable
Material Polyamide 6.6, high impact modified (PA66HIR)
Pack Cont. 100pcs.
Package Content packed in Bag
PART DESCRIPTION OCTCSFT6.5-PA66HIR-BK
Product Family for round holes
Product Group Fixing elements for corrugated tubing, with arrowhead
Short Description Convoluted Tubing Clip, oval hole 6.3 - 6.6 mm, arrow head, high impact modified, black
Attach to Ø 21.5, 18.5mm
Bundle Diameter max (metric) 21.5mm
Bundle ∅ 18.5-21.5mm
Bundle ∅ min. 18.5mm
for Hole ∅ (FH) 6.3 - 6.6 mm
for Panel Thickness min - max 1 - 2 mm

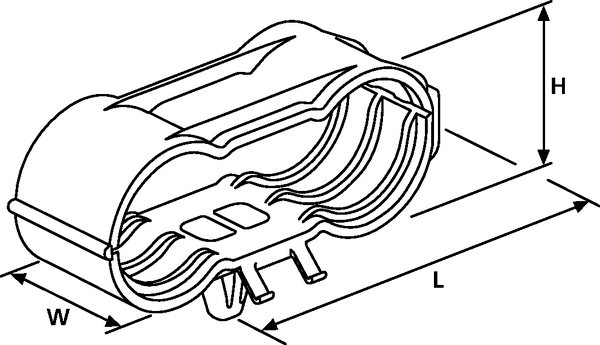

Height (H) 24.5mm
Length (L) 64.0mm
Nominal ∅ 21.0mm
Panel Thickness max. 1.0 - 2.0mm
Weight/Unit 0.0058kg
Width (W) 20.0mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
Specifications
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026250250
Packaging 1 - Height (m) 0.15m
Packaging 1 - Length (m) 0.4m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.018
Packaging 1 - Weight (kg) 0.601993kg
Packaging 1 - Width (m) 0.3m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 1000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 6.83993kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 12000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 103.08kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000464
ETIM 8.0 Key EC000464
ETIM 9.0 Key EC000464
UNSPSC Key 39121702
