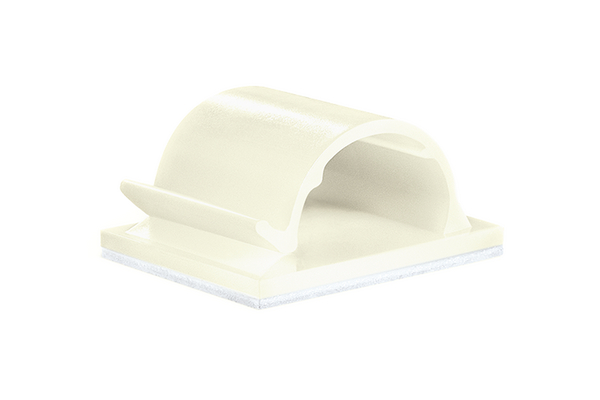

Cable clip for adhesive use/with pipe/tube holder, Dmin=14.0mm, Dmax=14.0mm
Art.-No. 151-00502 | RB14-PA66-BK

Copied
  • Flat design to use in applications with limited space
    One-piece self adhesive mount for quick and easy installation
    Can be used without cable ties offering process optimization
    Different sizes for various bundle diameters available
    Cost effective with easy application on smooth, clean surfaces

Request your individual offer now

Application RB-Series self adhesive mounts offer greater routing freedom and also reduce the risk of corrosion compared to screw fixing mounts. They are ideally suited for tool-free installation and can be re-opened and reused easily when cables need to be replaced. These mounts can be used without the need for additional cable ties. Offering process optimization in a variety of applications.
Colour Black (BK)
Fixation Method Pasting / Stick
Key product features self adhesive
Local order number RB14.NB4P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION RB14-PA66-BK
Package Content 200pcs.
Package Content packed in Bag
Product Family RB-Series
Product Group Mounts with cable clip, self-adhesive
Short Description Self Adhesive Clip with flat design 33.2x27.4 mm black
Type RB14
UV-Stabilised No
Variant Closed
Weight/Unit 0.00236kg
Bundle ⌀ 14.0-14.0mm
Bundle ⌀ max. 14.0mm
Bundle ⌀ min. 14.0mm
Height (H) 16.0mm
Length (L) 33.2mm
Nominal ⌀ 14mm
Width (W) 27.4mm
Width (W2) 23.0mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +60 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +60 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660314698
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 200
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0055
Packaging 1 - Weight (kg) 0.481029kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 2000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 5.43029kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 36000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 118.74kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
