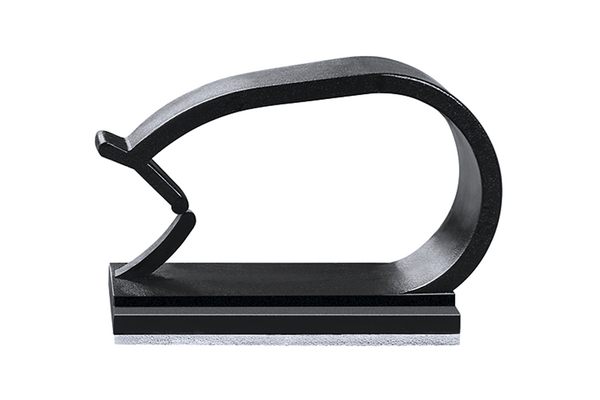

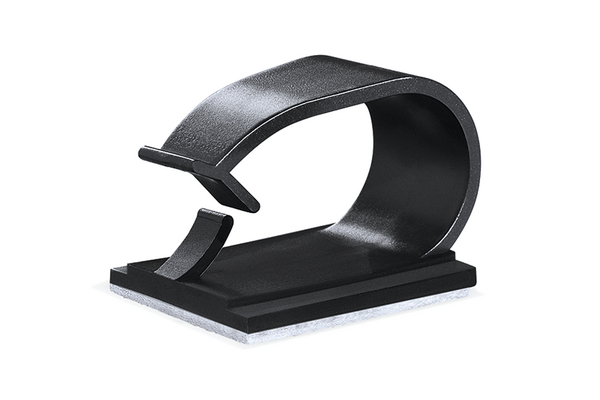

Cable clip for adhesive use/with pipe/tube holder, Dmax=20.0mm
Art.-No. 151-00831 | RB20-PA66HIRHS-BK Details

  • Flat design to use in applications with limited space
  • One-piece self adhesive mount for quick and easy installation
  • Can be used without cable ties offering process optimization
  • Different sizes for various bundle diameters available
  • Cost effective with easy application on smooth, clean surfaces
Show more

Request your individual offer now

Application RB-Series self adhesive mounts offer greater routing freedom and also reduce the risk of corrosion compared to screw fixing mounts. They are ideally suited for tool-free installation and can be re-opened and reused easily when cables need to be replaced. These mounts can be used without the need for additional cable ties. Offering process optimization in a variety of applications.
Colour Black (BK)
Fixation Method Pasting / Stick
Local order number 151-00831
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION RB20-PA66HIRHS-BK
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family RB-Series
Product Group Mounts with cable clip, self-adhesive
Short Description Self Adhesive Clip with flat design 33x27 mm black
Type RB20
Variant Closed
Bundle Diameter max (metric) 20.0mm
Bundle ∅ 20.0mm
Height (H) 25.0mm
Length (L) 33.0mm
Weight/Unit 0.0053kg
Width (W) 27.0mm
Width (W2) 18.0mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +60 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +60 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026410036
Packaging 1 - Height (m) 0.1m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00825
Packaging 1 - Weight (kg) 0.530001kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.25m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 1400
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.06
Packaging 3 - Weight (kg) 8.170014kg
Packaging 3 - Width (m) 0.4m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 22400
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 151.72kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
