09/12/2024

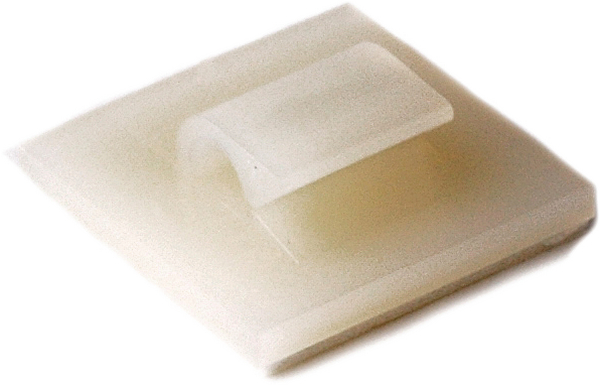

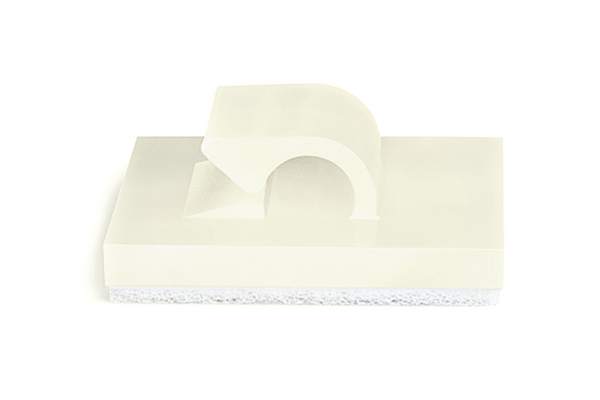

Cable clip for adhesive use/with pipe/tube holder, Dmax=5.0mm
Art.-No. 151-14000 | RB5-PA66-BK Details

  • Flat design to use in applications with limited space
  • One-piece self adhesive mount for quick and easy installation
  • Can be used without cable ties offering process optimization
  • Different sizes for various bundle diameters available
  • Cost effective with easy application on smooth, clean surfaces
Show more

Request your individual offer now

Application RB-Series self adhesive mounts offer greater routing freedom and also reduce the risk of corrosion compared to screw fixing mounts. They are ideally suited for tool-free installation and can be re-opened and reused easily when cables need to be replaced. These mounts can be used without the need for additional cable ties. Offering process optimization in a variety of applications.
Colour Black (BK)
Fixation Method Pasting / Stick
Local order number RB5.NB2P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION RB5-PA66-BK
Pack Cont. 50pcs.
Package Content packed in Bag
Product Family RB-Series
Product Group Mounts with cable clip, self-adhesive
Short Description Self Adhesive Clip with flat design 19x19 mm black
Type RB5
Variant Closed
Bundle Diameter max (metric) 5.0mm
Bundle ∅ 5.0mm

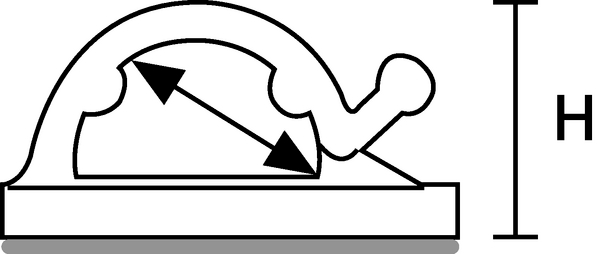

Height (H) 6.0mm
Length (L) 19.0mm
Nominal ∅ 5mm
Weight/Unit 0.001051kg
Width (W) 19.0mm
Width (W2) 9.7mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +60 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Hazardous Goods No
Operating Temperature -40 °C to +60 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660175572
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.141m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00042
Packaging 1 - Weight (kg) 0.057kg
Packaging 1 - Width (m) 0.1m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 8000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 13.42kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.258m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 144000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.208
Packaging 4 - Weight (kg) 262.56kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
