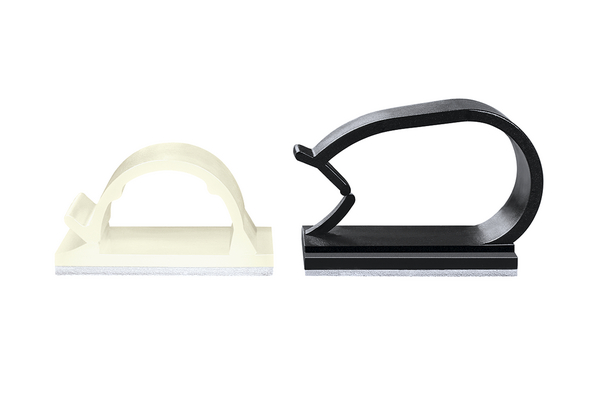

Cable clip for adhesive use/with pipe/tube holder, Dmax=5.0mm
Art.-No. 151-14006 | RB5APT-A-PA66-BK

Copied
  • Flat design to use in applications with limited space
    One-piece self adhesive mount for quick and easy installation
    Can be used without cable ties offering process optimization
    Different sizes for various bundle diameters available
    Cost effective with easy application on smooth, clean surfaces

Request your individual offer now

Application RB-Series self adhesive mounts offer greater routing freedom and also reduce the risk of corrosion compared to screw fixing mounts. They are ideally suited for tool-free installation and can be re-opened and reused easily when cables need to be replaced. These mounts can be used without the need for additional cable ties. Offering process optimization in a variety of applications.
Colour Black (BK)
Fixation Method Pasting / Stick
Local order number RB5APT-A-PA66-BK
Material Polyamide 6.6 (PA66)
PART DESCRIPTION RB5APT-A-PA66-BK
Package Content 50pcs.
Package Content packed in Bag
Product Family RB-Series
Product Group Mounts with cable clip, self-adhesive
Short Description fixing clip self adhesive for wires and hoses, D-Max=5mm
Type RB5APT-A
UV-Stabilised No
Weight/Unit 0.00129kg
Bundle ⌀ 5.0mm
Bundle ⌀ max. 5.0mm
Height (H) 6.0mm
Length (L) 19.0mm
Width (W) 19.0mm
Width (W2) 9.7mm
Adhesive Acrylate with base of acrylic foam
Adhesive Operating Temperature -40 °C to +90 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026688558
Packaging 1 - Height (m) 0.015m
Packaging 1 - Length (m) 0.255m
Packaging 1 - Qty 50
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.000860625
Packaging 1 - Weight (kg) 0.07348kg
Packaging 1 - Width (m) 0.225m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 8000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 12.7188kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.204m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 160000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.156
Packaging 4 - Weight (kg) 275.44kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
