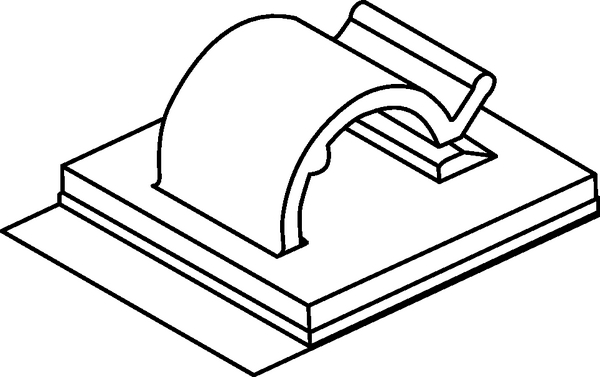

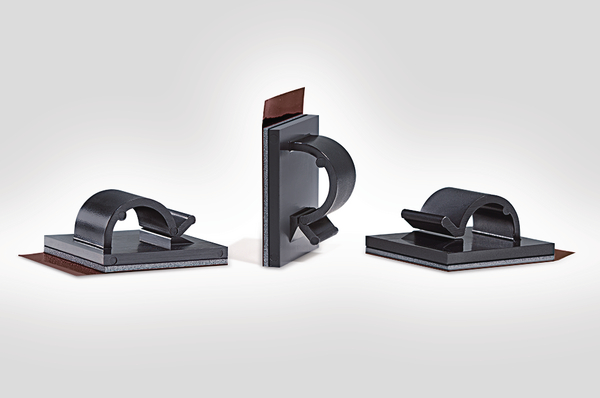

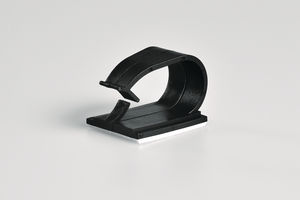

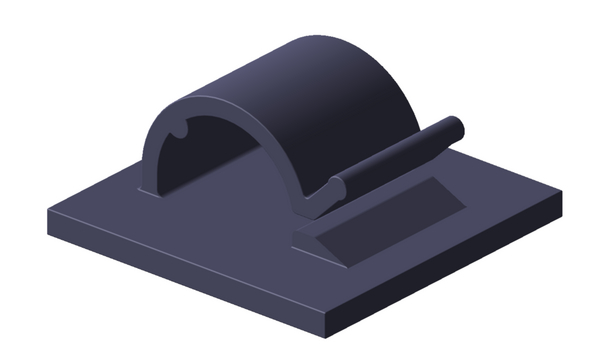

Cable clip for adhesive use, Dmax=8.0mm
Art.-No. 151-00497 | RB8APT-PA66-BK

Copied
  • Flat design to use in applications with limited space
    One-piece self adhesive mount for quick and easy installation
    Can be used without cable ties offering process optimization
    Different sizes for various bundle diameters available
    Cost effective with easy application on smooth, clean surfaces

Request your individual offer now

Application RB-Series self adhesive mounts offer greater routing freedom and also reduce the risk of corrosion compared to screw fixing mounts. They are ideally suited for tool-free installation and can be re-opened and reused easily when cables need to be replaced. These mounts can be used without the need for additional cable ties. Offering process optimization in a variety of applications.
Colour Black (BK)
Fixation Method Pasting / Stick
Local order number RB8APT-
Material Polyamide 6.6 (PA66)
PART DESCRIPTION RB8APT-PA66-BK
Package Content 100pcs.
Package Content packed in Bag
Product Family RB-Series
Product Group Mounts with cable clip, self-adhesive
Short Description Self Adhesive Clip 25x25 black
Type RB8APT
UV-Stabilised No
Variant Closed
Weight/Unit 0.002481kg
Bundle ⌀ 8.0mm
Bundle ⌀ max. 8.0mm
Height (H) 11.5mm
Length (L) 25.0mm
Width (W) 25.0mm
Width (W2) 12.7mm
Adhesive Acrylate with base of acrylic foam
Adhesive Operating Temperature -40 °C to +90 °C
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026286297
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.215m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00112875
Packaging 1 - Weight (kg) 0.25708kg
Packaging 1 - Width (m) 0.21m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 11.2452kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.204m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 80000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.156
Packaging 4 - Weight (kg) 245.92kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
