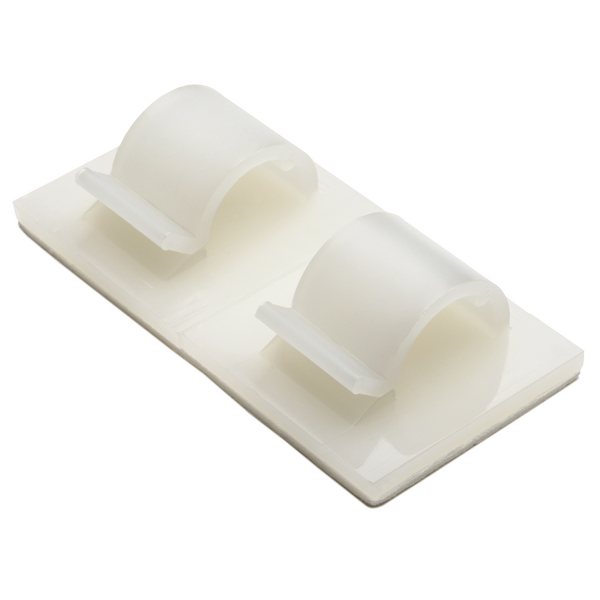

Cable clip for adhesive use/with pipe/tube holder, Dmax=8.0mm, natural, 100pcs.
Art.-No. 151-13606 | RB8-PA66-NA Details

  • Flat design to use in applications with limited space
  • One-piece self adhesive mount for quick and easy installation
  • Can be used without cable ties offering process optimization
  • Different sizes for various bundle diameters available
  • Cost effective with easy application on smooth, clean surfaces
Show more
Package size

Request your individual offer now

Application RB-Series self adhesive mounts offer greater routing freedom and also reduce the risk of corrosion compared to screw fixing mounts. They are ideally suited for tool-free installation and can be re-opened and reused easily when cables need to be replaced. These mounts can be used without the need for additional cable ties. Offering process optimization in a variety of applications.
Colour Natural (NA)
Fixation Method Pasting / Stick
Local order number RB8.NN3P
Material Polyamide 6.6 (PA66)
PART DESCRIPTION RB8-PA66-NA
Pack Cont. 100pcs.
Package Content packed in Bag
Product Family RB-Series
Product Group Mounts with cable clip, self-adhesive
Short Description Self Adhesive Clip with flat design 25x25 mm natural
Type RB8
Variant Closed
Bundle Diameter max (metric) 8.0mm
Bundle ∅ 8.0mm
Height (H) 11.5mm
Length (L) 25.0mm
Nominal ∅ 8mm
Weight/Unit 0.00236kg
Width (W) 25.0mm
Width (W2) 12.7mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -40 °C to +60 °C
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2 (excluding adhesive)
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +60 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
Customs Number 39269097
GTIN-13 / EAN 5022660314872
Packaging 1 - Height (m) 0.03m
Packaging 1 - Length (m) 0.141m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00058
Packaging 1 - Weight (kg) 0.236001kg
Packaging 1 - Width (m) 0.136m
Packaging 3 - Height (m) 0.345m
Packaging 3 - Length (m) 0.38m
Packaging 3 - Qty 4000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.0498
Packaging 3 - Weight (kg) 10.06004kg
Packaging 3 - Width (m) 0.38m
Packaging 4 - Height (m) 1.179m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 72000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.132
Packaging 4 - Weight (kg) 202.08kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
