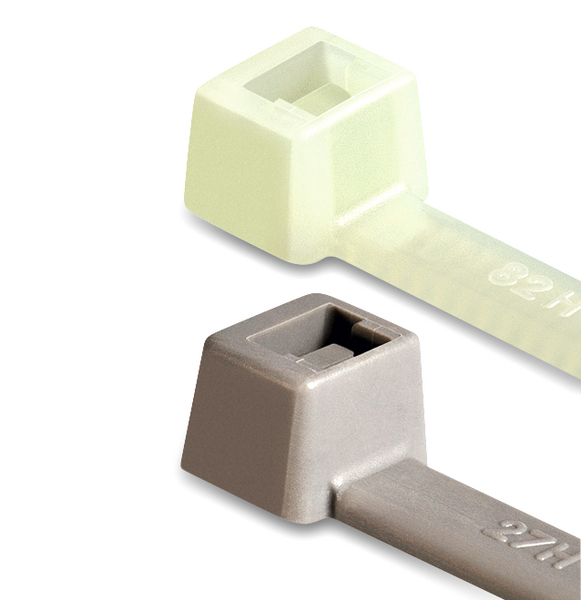

Cable Ties for temperatures up to + 150°C in Polyamide 4.6 T120R(E)

T-Series in PA46, Article number: 114-12179

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool

Certifications & Approvals

Application

These cable ties are used for routing, bundling and securing of cables, pipes and hoses.

T-Series in PA46 is suitable for following markets and industries

Application Tool MK6, MK9P, MK21, EVO9, EVO9HT
Colour Natural (NA)
Description Short (BMEcat) (max. 150 characters) Cable Tie 380x7.6 PA46-transparant
GLOBAL PART DESCRIPTION T120R(E)-PA46-NA
Identification Plate Position none
Pack Cont. 100pcs.
Package Quantity per pcs.
Product Family T-Series in PA46
Product Group Cable Ties for temperatures up to + 150°C in Polyamide 4.6
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T120R.RN3P
Variant Inside Serrated
Bundle ∅ max. 100mm
Bundle ∅ min. 3.0mm
Length (L) 387mm
Min.Tensile Strength 535N
Thickness (T) 1.8mm
Width (W) 7.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Limited Fire Hazard Yes
Material Polyamide 4.6 (PA46)
Operating Temperature - °C -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
Specifications
Specifications IEC 60092 series
EAN / GTIN 5022660021268
Packaging 1 - Height (m) 0.066m
Packaging 1 - Length (m) 0.416m
Packaging 1 - Qty 100
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00428
Packaging 1 - Weight (kg) 0.61kg
Packaging 1 - Width (m) 0.156m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 2000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 13.02kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 281.04kg
Packaging 4 - Width (m) 0.8m
Weight 0.61kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
