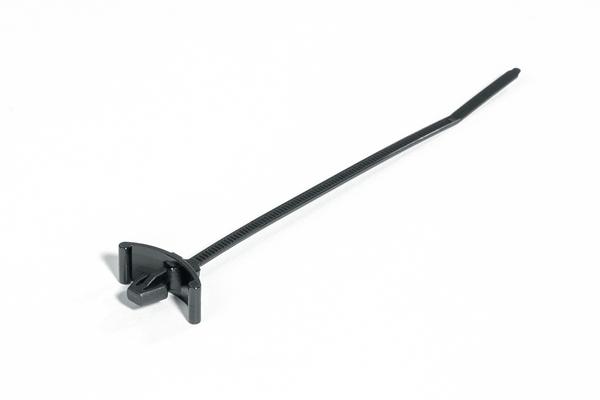

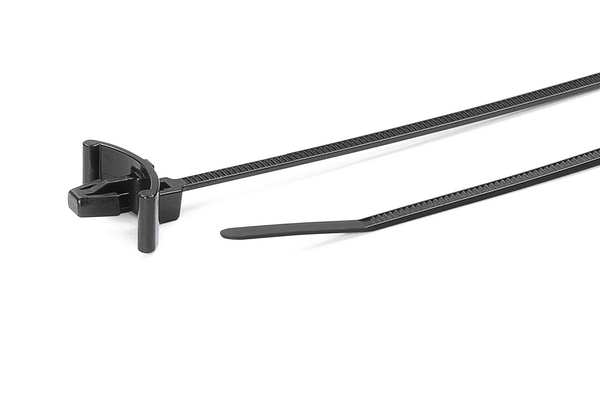

Fixing tie for hole (round), inside serrated, Ø1.5-16.0mm, black, 100pcs.
Art.-No. 111-85560
| T18RSF-PA66UV-BK
|
Details
This product is not available anymore.
Alternative product available
- Easy to assemble without the need for a tool
- Cable tie head always situated in defined position
- Arrowhead simply locks into place
- Supporting legs provide a secure and firm fixing in areas where space is limited
- Variations for round and oval holes are available
- “Ladder style” types are very flexible
Request your individual offer now
Request quote
More products in this product group:
| Application | For the bundling and fixing of cable harnesses, pipes and hoses in the automotive, aerospace, white goods industries and panel building. |
| Application Tool | MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7SP, EVO7i, EVO7iSP |
| Cable Tie | Polyamide 6.6, UV-resistant (PA66W) |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Local order number | T18RSF.WB3P |
| Material | Polyamide 6.6, UV-stabilised (PA66UV) |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| PART DESCRIPTION | T18RSF-PA66UV-BK |
| Product Family | for round holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Wings |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie with Arrowhead and Wings PA66W 100x2.5 black |
| Tie Closure | plastic pawl |
| Variant | Inside Serrated |
| Bundle Diameter max (metric) | 16.0mm |
| Bundle ∅ | 1.5-16.0mm |
| Bundle ∅ min. | 1.5mm |
| for Hole ∅ (FH) | 4.6 - 4.8 mm |
| for Panel Thickness min - max | 0.8 - 3 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
| Length (L) | 100mm |
| Min.Tensile Strength | 80N |
| Panel Thickness max. | 0.8 – 3.0mm |
| Thickness (T) | 1.0mm |
| Weight/Unit | 0.000563kg |
| Width (W) | 2.5mm |
| Width (W2) | 18.5mm |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026107363 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.22m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00528m³ |
| Packaging 1 - Weight (kg) | 0.06528kg |
| Packaging 1 - Width (m) | 0.24m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 4.5668kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 120000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 112.36kg |
| Packaging 4 - Width (m) | 0.8m |
