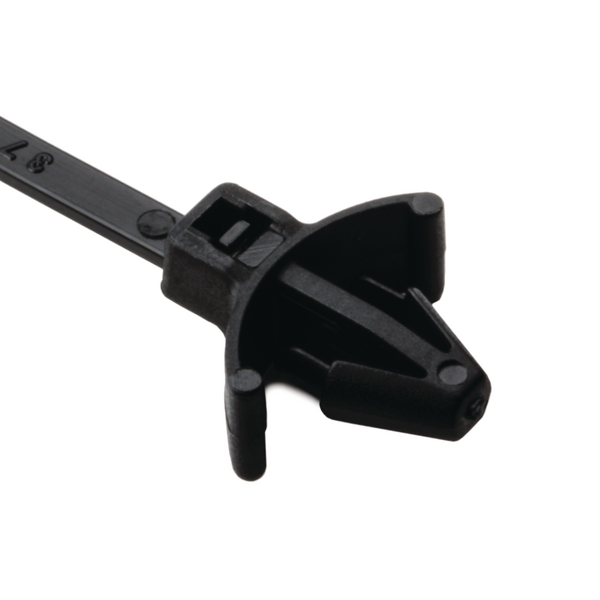

Fixing tie for hole (round), inside serrated, ⌀1.5-22.0mm, black, 1000pcs.
Art.-No. 126-00042
| T18RWPM-PA66HS-BK
|
Copied
- Easy to assemble without the need for a tool
- Cable tie head always situated in defined position
- Arrowhead simply locks into place
- Supporting legs provide a secure and firm fixing in areas where space is limited
Request quote
More products in this product group:
| Application | For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building. |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Local order number | T18RWPM0HSM4 |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| Min.Tensile Strength | 80N |
| PART DESCRIPTION | T18RWPM-PA66HS-BK |
| Package Content | 1000pcs. |
| Package Content packed in | Pack |
| Product Family | for round holes |
| Product Group | 1-piece fixing ties with arrowhead, with wings |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | T18RWPM |
| UV-Stabilised | No |
| Variant | Inside Serrated |
| Weight/Unit | 0.01kg |
| Bundle ⌀ | 1.5-22.0mm |
| Bundle ⌀ max. | 22.0mm |
| Bundle ⌀ min. | 1.5mm |
| Disc ⌀ | 13.2mm |
| Height (H) | 5.80mm |
| Length (L) | 113.0mm |
| Panel Thickness | 1.52 - 3.2mm |
| Thickness (T) | 1.1mm |
| Width (W) | 2.5mm |
| Width (W2) | 6.4mm |
| for Hole ⌀ (FH) | 4.8 - 5.6 mm |
| for Panel Thickness min - max | 1.5 - 3.2 mm |
| for Panel Thickness min - max | 0.1 - 0.1 " |
| CE Certification | Yes |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | Yes |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US) | Yes |
| UL-File Number | E64139 |
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026420073 |
| Packaging 1 - Type | Bag |
| Packaging 3 - Height (m) | 0.216m |
| Packaging 3 - Length (m) | 0.60801m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0521m³ |
| Packaging 3 - Weight (kg) | 100.0kg |
| Packaging 3 - Width (m) | 0.396875m |
