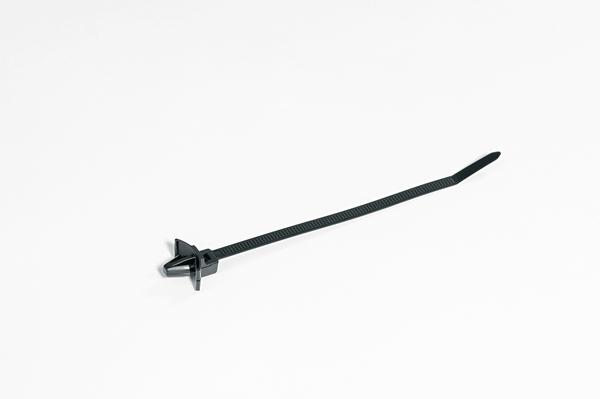

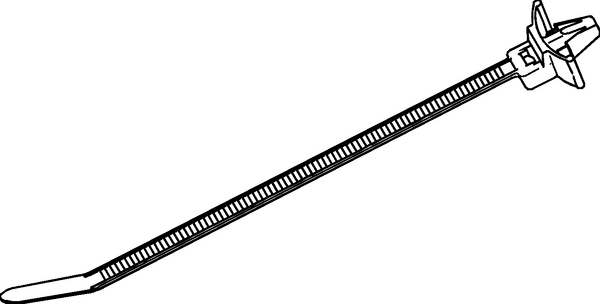

1-Piece Fixing Ties with Arrowhead, with Wings T50SSL5

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes, Article number: 126-02204

Features

  • Easy to assemble without the need for a tool
  • Cable tie head always situated in defined position

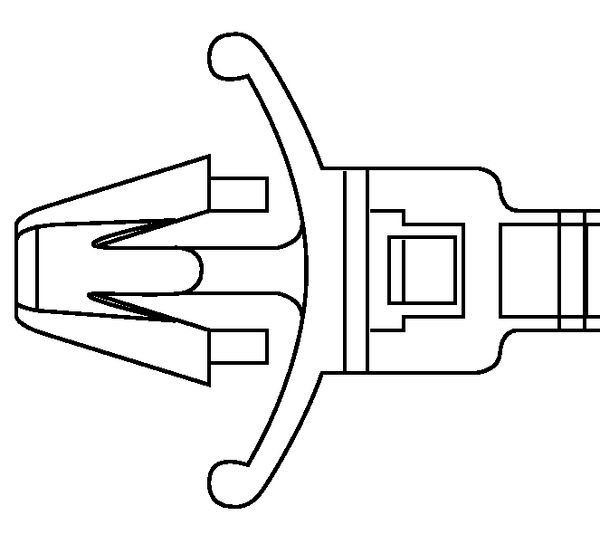

  • Arrowhead simply locks into place
  • Supporting legs provide a secure and firm fixing in areas where space is limited

Certifications & Approvals

Application

For bundling and fixing of cable harnesses, pipes and hoses in many different industries, including automotive, aerospace, white goods manufacturing and panel building.

1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes is suitable for following markets and industries

Anti rotation (Yes / No) NO
Application Tool MK3PNSP2, MK3SP, MK6, MK7HT, MK7P, MK20, MK21, EVO7, EVO7SP, EVO9
Colour Black (BK)
Description Short (BMEcat) (max. 150 characters) Fixing tie 135x4.6 mm, black
Fixation Method Arrowhead
Fixing Hole Shape Circular
GLOBAL PART DESCRIPTION T50SSL5-PA66HS-BK
Identification Plate Position none
Pack Cont. 500pcs.
Package Quantity per pcs.

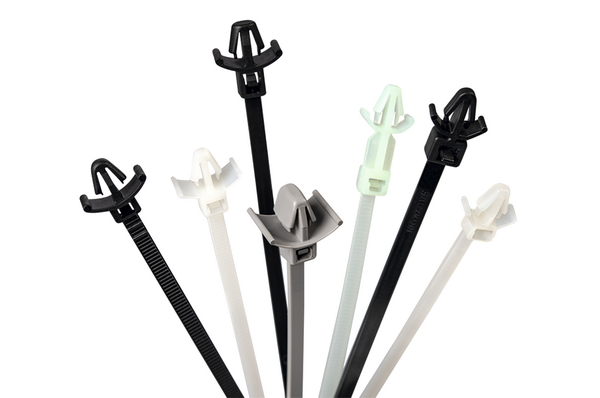

Product Family 1-Piece Fixing Ties with Arrowhead, with Wings, for Round Holes
Product Group 1-Piece Fixing Ties with Arrowhead, with Wings
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Type T50SSL5.HB6P
Variant Inside Serrated
Bundle ∅ max. 27.0mm
Bundle ∅ min. 1.5mm
for Hole ∅ (FH) 6.1 - 6.5 mm
for Panel Thickness min - max 0.5 - 2.7 mm
for Panel Thickness min - max 0 - 0.1 "
Height (H) 10mm

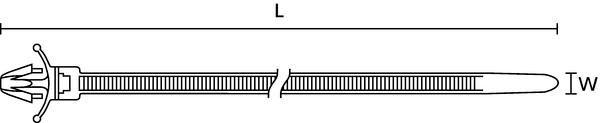

Length (L) 135mm
Min.Tensile Strength 200N
Panel Thickness max. 0.5 – 2.7mm
Width (W) 4.6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Specifications
EAN / GTIN 5022660326868
Packaging 1 - Height (m) 0.12m
Packaging 1 - Length (m) 0.345m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01014
Packaging 1 - Weight (kg) 0.665kg
Packaging 1 - Width (m) 0.245m
Packaging 3 - Height (m) 0.364m
Packaging 3 - Length (m) 0.563m
Packaging 3 - Qty 5000
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0777
Packaging 3 - Weight (kg) 7.611kg
Packaging 3 - Width (m) 0.379m
Packaging 4 - Height (m) 1.236m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.187
Packaging 4 - Weight (kg) 112.332kg
Packaging 4 - Width (m) 0.8m
Weight 0.665kg
ETIM 5.0 EC000046
ETIM 6.0 EC000046
UNSPSC Key 39121717
