Rigid PVC wiring ducts : HTWD-PN-40X80

Wiring duct 40x80 mm, 2000 mm, PVC, grey, Article number: 184-10208

Features

  • Narrow slots suitable for small-diameter wires
  • Smooth, burr-free edges protect installers from injury and wires from damage
  • Fingers can be removed with no sharp edges at pre-notched snap-off points
  • Further pre-notched snap-off point at base of sidewall allow cutting out and removing sections of sidewall with no sharp edges
  • Raised mounting points for easily and securely fastening wire retainers and other accessores prior to cabling
  • Wire retainers and accessories leave no protruding parts below surface of duct
  • Duct covers are easy to mount and remove, yet hold securely even in a vertical position and under vibration
  • Cover is flush with side of duct, allowing for tight, contiguous placement of ducts
  • Additional retainer nub on fingers on ducts height 80 and above to prevent cables from slipping

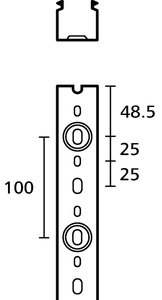

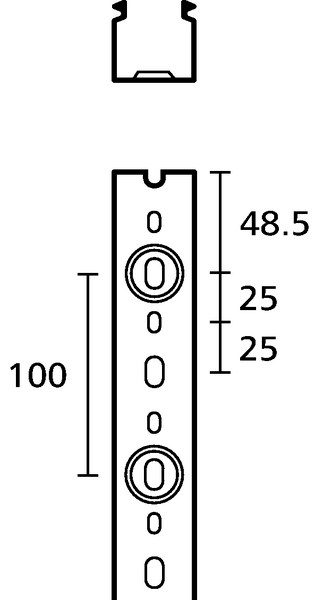

  • Base perforation according to DIN EN 50085

Certifications & Approvals

Application

T1E wiring ducts are used in control panels, switching systems, and especially electronic control systems.

HelaDuct HTWD-PN for small-diameter wires (metric sizes) is suitable for following markets and industries

Application Tool 4FTOOL
Colour Grey (GY)
Current leak stable Yes/No Yes
Fixation Method Screw Mounting
Pack Cont. 32m
Package Quantity per metre
PART DESCRIPTION HTWD-PN-40X80-PVC-GY
Product Family HelaDuct HTWD-PN for small-diameter wires (metric sizes)
Product Group Rigid PVC wiring ducts
Short Description Wiring duct 40x80 mm, 2000 mm, PVC, grey
Type of side wall Slotted
Height (H) 80mm
Length (L) 2m
Suitable for cross section 2498mm²
Width (W) 40mm
Width (W2) 4mm
Width (W3) 6mm
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V0
Hazardous good No
Material Polyvinylchloride (PVC)
Nato number 5975-12-411-1599
Operating Temperature - °C -5 °C to +65 °C
Self extinguishing (Yes/No) Yes
Specifications
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
UL-File Number E357929
EAN / GTIN 4031026567563
Packaging 3 - Height (m) 0.197m
Packaging 3 - Length (m) 2.03m
Packaging 3 - Qty 32
Packaging 3 - Type Carton
Packaging 3 - Volume (m³) 0.0816
Packaging 3 - Weight (kg) 18.1kg
Packaging 3 - Width (m) 0.204m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 640
Packaging 4 - Type pallet
Packaging 4 - Weight (kg) 383.0kg
Packaging 4 - Width (m) 0.8m
Weight 0.55kg
ETIM 6.0 EC000012
ETIM 7.0 Key EC000012
